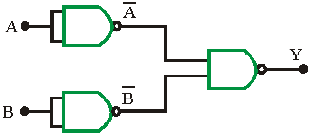

The combination of the gates shown in the figure below produces

Physics · JEE Advanced · NTA Exams — Electronic Devices

The combination of the gates shown in the figure below produces


1. NOR gate
2. OR gate
3. AND gate
4. XOR gate

Answer

(B) OR gate
