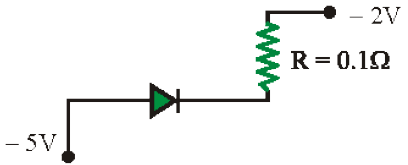

Assertion : In the following circuit the potential drop across the resistance is zero.
Reason :The given resistance has low value.
Reason :The given resistance has low value.
- Assertion and Reason are true and the Reason is the correct explanation of the Assertion.
- Assertion and Reason are true but the Reason is not a correct explanation of the Assertion.
- Assertion is true but the Reason is false.
- Assertion is false but the Reason is true.
Answer
(B) Assertion and Reason are true but the Reason is not a correct explanation of the Assertion.
