Figure gives a system of logic gates. From the study of truth table it can be found that…
Physics · JEE Advanced · NTA Exams — Electronic Devices

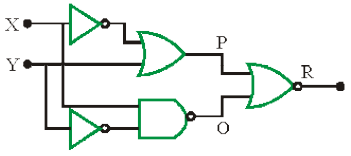

Figure gives a system of logic gates. From the study of truth table it can be found that to produce a high output (1) at R, we must have
- X = 0, Y = 1
- X = 1, Y = 1
- X = 1, Y = 0
- X = 0, Y = 0
Answer
(C) X = 1, Y = 0
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
