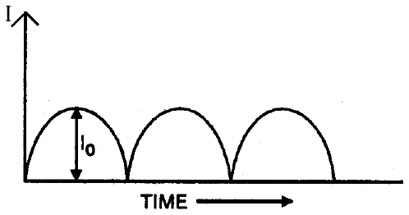

The Sinusoidal output current versus time curve of a rectifier is shown in figure.

The average value of the output current in this case is

1. I₀/π
2. \(\mathrm{I}_{0} \sqrt{2}\)
3. 2I₀/π
4. I₀/2

Answer

(C) 2I 0 / π
