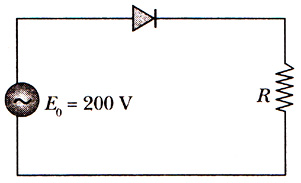

A sinusoidal voltage of peak value 200 V is connected to a diode and resistor R in the cirucuit shown so that half-wave rectification occurs. If the forward resistance of the diode is negligible compared to R, the rms voltage (in volt) across R is approximately :
- 200
- 100
- \(200 / \sqrt{2}\)
- 280
Answer
(B) 100
