The correct option for getting X = 1 from the given circuit is

Physics · JEE Main · NTA Exams — Electronic Devices

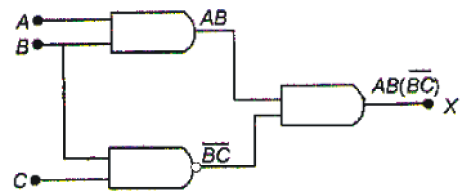

The correct option for getting X = 1 from the given circuit is

1. A = B = C = 1
2. A = B = 1 and C = 0
3. A = C = 1 and B = 0
4. A = 0 and B = C = 1

Answer

(B) A = B = 1 and C = 0

Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
