The forward characteristic of p-n junction is shown in the figure. What is the dynamical…
Physics · JEE Main · NTA Exams — Electronic Devices

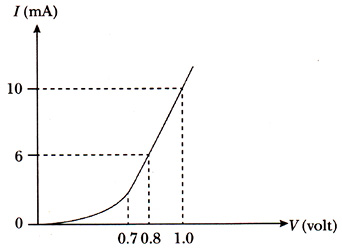

The forward characteristic of p-n junction is shown in the figure. What is the dynamical resistance of p-n junction at 0.9 V ?
- 130Ω
- 100Ω
- 50Ω
- 30Ω
Answer
(C) 50 Ω
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
