In the given circuit, the output Y becomes zero for the inputs :

Physics · JEE Main · NTA Exams — Electronic Devices

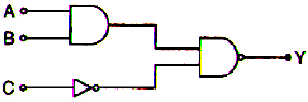

In the given circuit, the output Y becomes zero for the inputs :

1. A = 1, B = 0, C = 0
2. A = 0, B = 1, C = 1
3. A = 0, B = 0, C = 0
4. A = 1, B = 1, C = 0

Answer

(D) A = 1, B = 1, C = 0

Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
