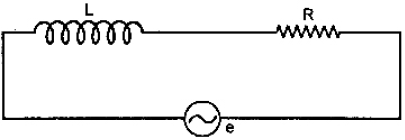

In the circuit shown in figure the r.m.s. value of e is 5 V and r.m.s. value of voltage drop across L is 3 V.
The r.m.s. value of voltage across R will be
The r.m.s. value of voltage across R will be
- 2 V
- 3 V
- 4 V
- 0 V
Answer
(C) 4 V
