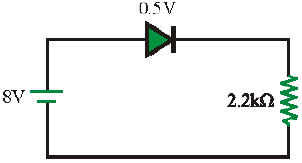

In the circuit, if the forward voltage drop for the diode is 0.5V, the current will be

1. 3.4 mA
2. 2 mA

3. 2.5 mA
4. 3 mA

Answer

(A) 3.4 mA
