An infinite number of identical capacitors each of capacitance 1µF are connected as in…
Physics · JEE Advanced · NTA Exams — Electrostatics

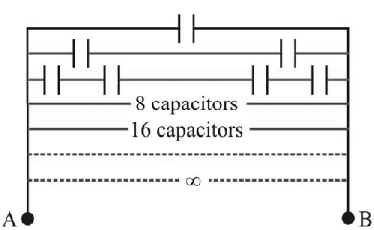

An infinite number of identical capacitors each of capacitance 1µF are connected as in adjoining figure. Then the equivalent capacitance between A and B is
- 1 µF
- 2 µF
- \(\frac{1}{2} \mu \mathrm{~F}\)
- ∞
Answer
(B) 2 µ F
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
