Switch S of the circuit shown in figure is closed at t = 0. If e denotes the induced…
Physics · JEE Advanced · NTA Exams — Electromagnetic Induction and Alternating Currents

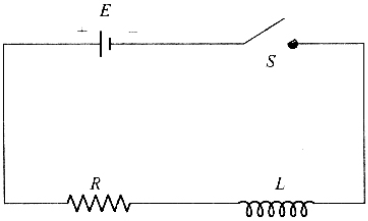

Switch S of the circuit shown in figure is closed at t = 0. If e denotes the induced e.m.f. in L and I is the current flowing through the circuit at time t, which of the following graphs is/are correct ?
- \[\zeta\]
- \[\text { r }\]
Answer
(C) , (D) r
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
