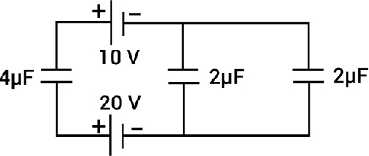

In the circuit shown in steady state
Physics · JEE Advanced · NTA Exams — Electrostatics
In the circuit shown in steady state
- charge across 4µF capacitor is 20 µC
- charge across 4µF capacitor is 10 µC
- potential difference across 4µF capacitor is 5 Volt
- potential difference across 4µF capacitor is 10 Volt
Answer
(A) charge across 4 µ F capacitor is 20 µ C, (C) potential difference across 4 µ F capacitor is 5 Volt
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
