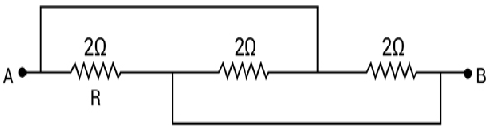

The electrical resistance between points A and B of the figure shown is
Physics · JEE Advanced · NTA Exams — Current Electricity
The electrical resistance between points A and B of the figure shown is
- (2/3) Ω
- 2 Ω
- (3/2) Ω
- 6 Ω
Answer
(A) (2/3) Ω
