A meter bridge is set-up as shown, to determine an unknown resistance X using a standard…
Physics · JEE Advanced · NTA Exams — Current Electricity

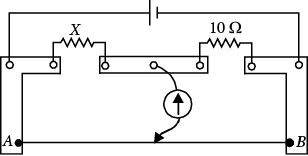

A meter bridge is set-up as shown, to determine an unknown resistance X using a standard 10 ohm resistor. The galvanometer shows null point when tapping-key is at 52 cm mark. The end-corrections are 1 cm and 2 cm respectively for the ends A and B. The determined value of X is
- 10.2 ohm
- 10.6 ohm
- 10.8 ohm
- 11.1 ohm
Answer
(B) 10.6 ohm
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
