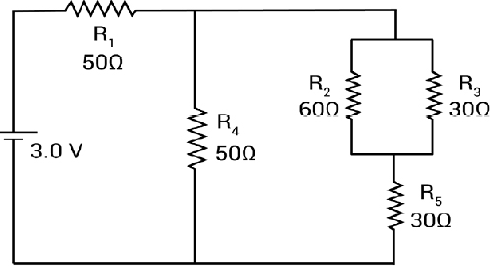

In the circuit shown the resistances are given in ohms and the battery is assumed to be ideal with e.m.f. equal to 3.0 volt.
The potential difference across the resistor R5 is
- 0.4 V
- 0.5 V
- 0.6 V
- 1.0 V
Answer
(C) 0.6 V
