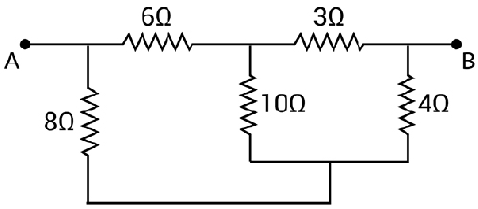

What is the equivalent resistance of the network across points A and B shown in figure below.
- 4 ohm
- 36/7 ohm
- 23/7 ohm
- 12/7 ohm
Answer
(B) 36/7 ohm
