A battery of internal resistance 4Ω is connected to the network of resistances as shown…
Physics · JEE Advanced · NTA Exams — Current Electricity

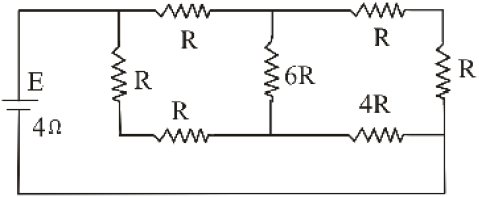

A battery of internal resistance 4Ω is connected to the network of resistances as shown. In order that the maximum power can be delivered to the network, the value of R in Ω should be
- 4/9
- 2
- 8/3
- 18
Answer
(B) 2
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
