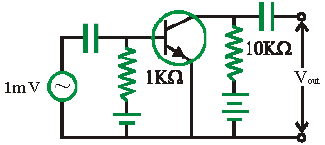

In the following common emitter configuration an NPN transistor with current gain β = 100 is used. The output voltage of the amplifier will be

1. 10 mV
2. 0.1 V
3. 1.0 V
4. 10 V

Answer

(C) 1.0 V
