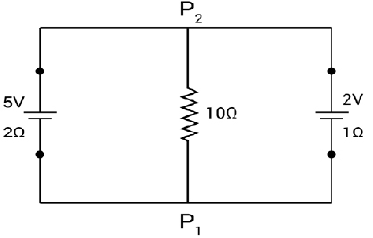

A 5 V battery with internal resistance 2 Ω and a 2 V battery with internal resistance 1 Ω are connected to a 10 Ω resistor as shown in the figure.

The current in the 10 Ω resistor is

1. 0.28 A, P₂ to P₁
2. 0.03 A, P₁ to P₂

3. 0.03 A, P₂ to P₁
4. 0.28 A, P₁ to P₂

Answer

(A) 0.28 A, P 2 to P 1
