Consider the following statements regarding the network shown in the figure (i) The…
Physics · JEE Main · NTA Exams — Current Electricity

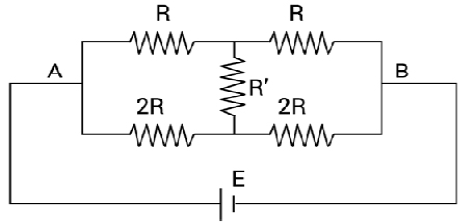

Consider the following statements regarding the network shown in the figure
(i) The equivalent resistance of the network between A and B is independent of the value of R’
(ii) The equivalent resistance of the network between points A and B is 4 R/3
(iii) The current flowing through R’ is zero
Which of the above statement(s) is/are correct ?
(i) The equivalent resistance of the network between A and B is independent of the value of R’
(ii) The equivalent resistance of the network between points A and B is 4 R/3
(iii) The current flowing through R’ is zero
Which of the above statement(s) is/are correct ?
- (i) alone
- (ii) alone
- (ii) and (iii)
- (i), (ii) and (iii)
Answer
(D) (i), (ii) and (iii)
