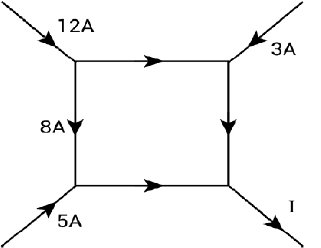

The figure shows a network of currents. The magnitude of currents is shown here. The current I will be

1. – 3A
2. 3A
3. 13 A
4. 20 A

Answer

(D) 20 A
