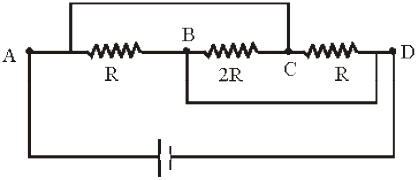

In the figure shown below, the electric current flowing through 2R resistor is
Physics · JEE Main · NTA Exams — Current Electricity
In the figure shown below, the electric current flowing through 2R resistor is
- from left to right
- from right to left
- no current flows
- double to that through any other resistors
Answer
(B) from right to left
