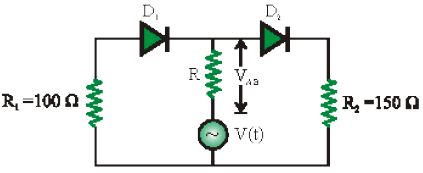

In the circuit given below, V(t) is the sinusoidal voltage source, voltage drop VAB(t) across the resistance R is
- Is half wave rectified
- Is full wave rectified
- Has the same peak value in the positive and negative half cycles
- Has different peak values during positive and negative half cycle
Answer
(D) Has different peak values during positive and negative half cycle
