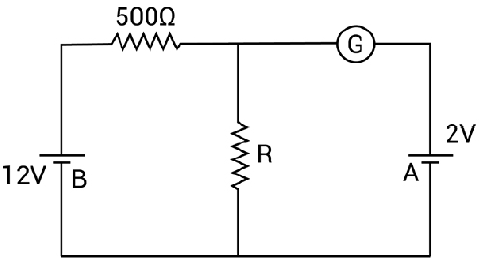

In the circuit, the galvanometer G shows zero deflection. If the batteries A and B have negligible internal resistance, the value of the resistor R will be
- 200 Ω
- 100 Ω
- 500 Ω
- 1000 Ω
Answer
(B) 100 Ω
