The figure shows currents in a part of an electric circuit, then current I is

Physics · JEE Main · NTA Exams — Current Electricity

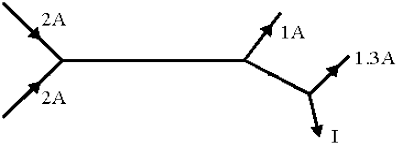

The figure shows currents in a part of an electric circuit, then current I is

1. 1.7 A
2. 3.7 A
3. 1.3 A
4. 1 A

Answer

(A) 1.7 A

Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
