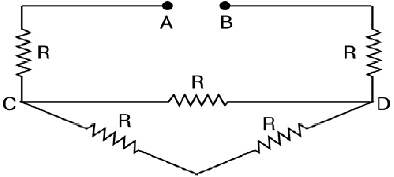

What is the equivalent resistance between A and B in the circuit of figure, if R = 3 Ω,
Physics · JEE Main · NTA Exams — Current Electricity
What is the equivalent resistance between A and B in the circuit of figure, if R = 3 Ω,
- 8 Ω
- 9 Ω
- 12 Ω
- 15 Ω
Answer
(A) 8 Ω
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
