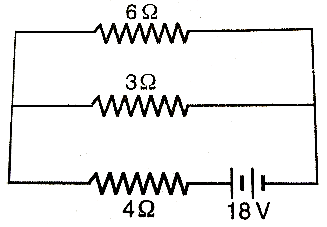

The total power dissipated (in watt) in the circuit shown is

Physics · Class 12 · CBSE — Current Electricity

1. 4
2. 16
3. 40
4. 54

Answer

(C) 40

Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
