The figure shows four pairs of parallel identical conducting plates, separated by the…
Physics · Class 12 · CBSE — Electrostatic Potential & Capacitance

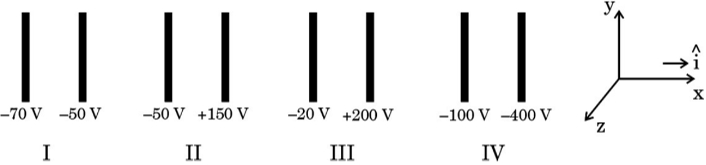

The figure shows four pairs of parallel identical conducting plates, separated by the same distance 2.0 cm and arranged perpendicular to x-axis. The electric potential of each plate is mentioned. The electric field between a pair of plates is uniform and normal to the plates.
Let \({E}_1, {E}_2, {E}_3\) and \({E}_4\) be the magnitudes of the electric field between the pairs of plates, I, II, III and IV respectively. Then:
- \({E}_1>{E}_2>{E}_3>{E}_4\)
- \({E}_3>{E}_4>{E}_1>{E}_2\)
- \({E}_4>{E}_3>{E}_2>{E}_1\)
- \({E}_2>{E}_3>{E}_4>{E}_1\)
Answer
(B) E _3> E _4> E _1> E _2
