Physics · Class 12 · CBSE — Semiconductor Electronics

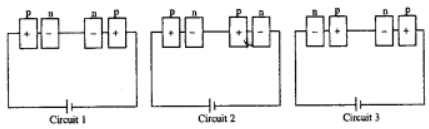

Two identical p-n junctions may be connected in series with a battery in three ways as shown. The potential drops across the two p-n junctions are equal in
- circuit 2 and 3
- circuit 3 only
- circuit 1 and 2
- circuit 1 only
Answer
(C) circuit 1 and 2
