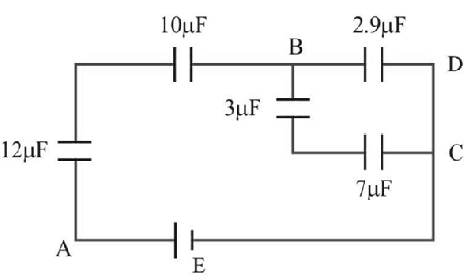

Five capacitors are connected as shown in the diagram. If the p.d. between A and B is 22 V, the emf of the cell is
- 26 V
- 42 V
- 38 V
- 46 V
Answer
(D) 46 V
