In the network shown in figure, the values of V 0 and I are
Physics · Class 12 · CBSE — Current Electricity

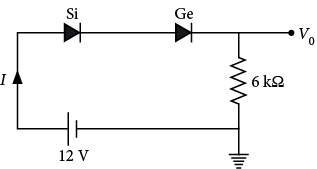

In the network shown in figure, the values of V0 and I are
- 12 V, 2 mA
- 11 V, 1.83 mA
- 11.3 V, 1.88 mA
- 11.7 V, 1.95 mA
Answer
(B) 11 V, 1.83 mA
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
