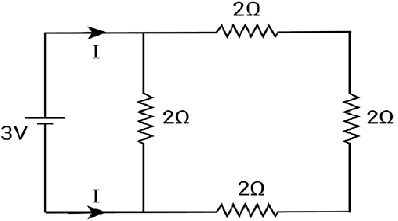

What is the current I in the circuit as shown in figure

Physics · JEE Main · NTA Exams — Current Electricity

What is the current I in the circuit as shown in figure

1. 2A
2. 1.2 A
3. 1 A
4. 0.5 A

Answer

(A) 2A
