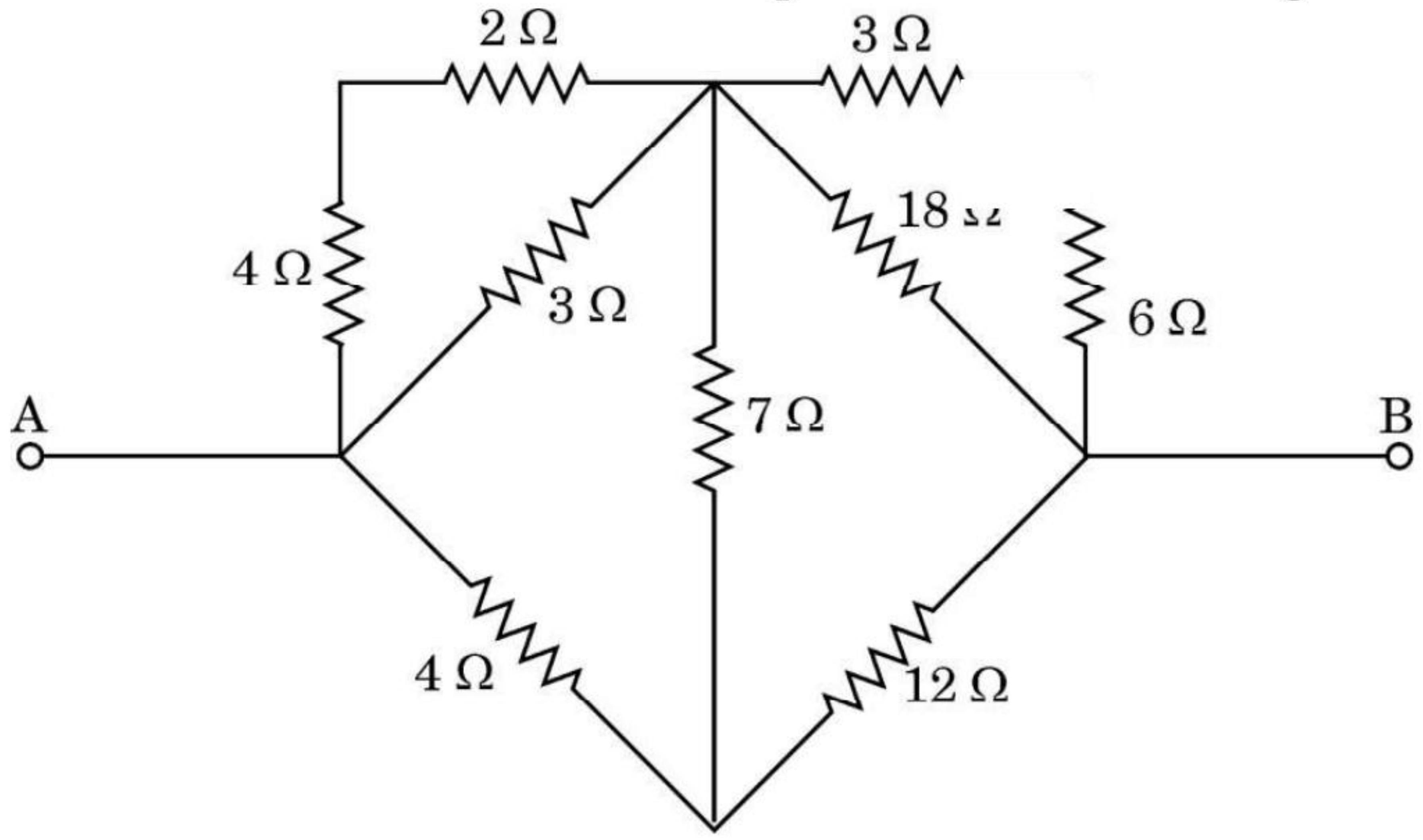

The effective resistance between points A and B in the given circuit is:

Physics · Class 12 · CBSE — Current Electricity

1. \(6 \Omega\)
2. \(\frac{8}{3} \Omega\)
3. \(\frac{16}{3} \Omega\)
4. \(2 \Omega\)

Answer

(C) 16 3

Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
