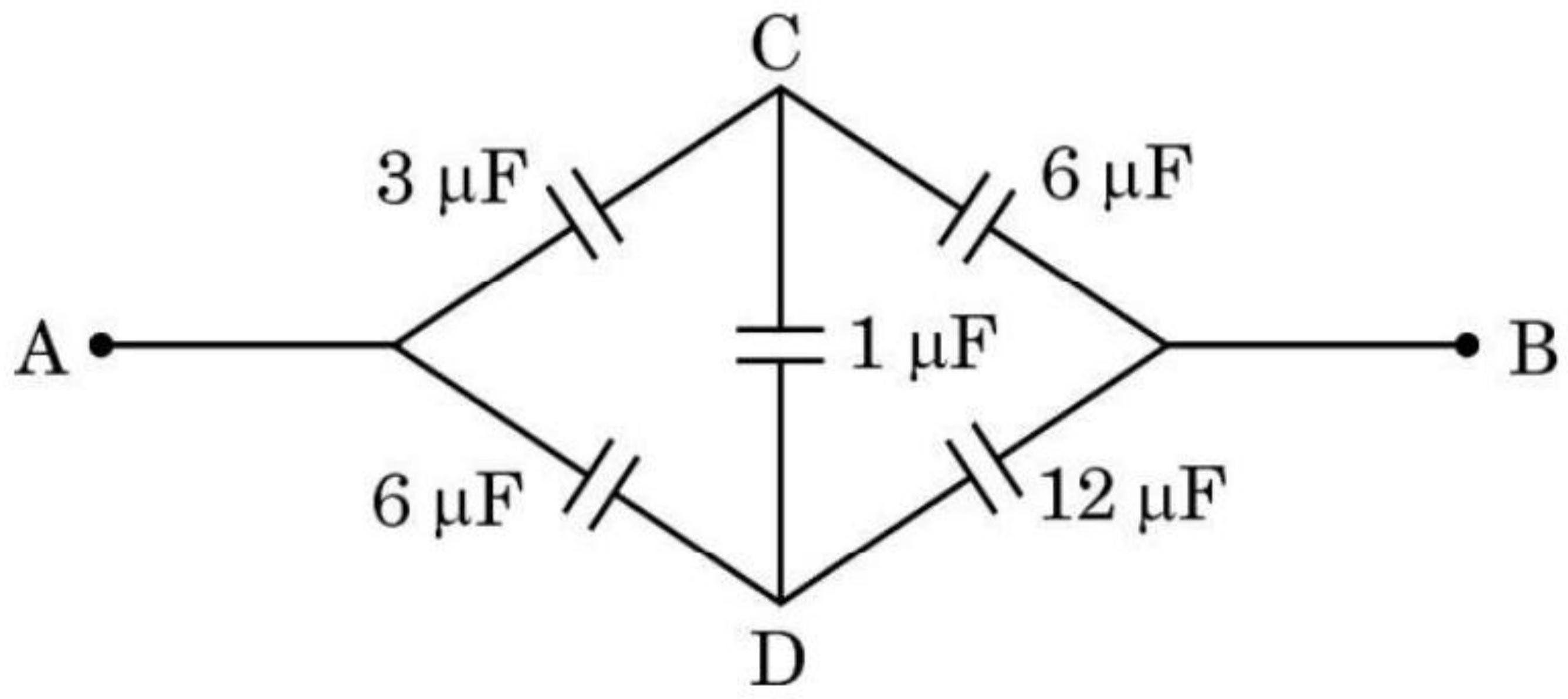

The effective capacitance of the network between points A and B shown in the figure is:

Physics · Class 12 · CBSE — Electrostatic Potential & Capacitance

1. \(\frac{4}{3} \mu {~F}\)
2. \(2 \mu {~F}\)
3. \(\frac{3}{2} \mu {~F}\)
4. \(6 \mu {~F}\)
