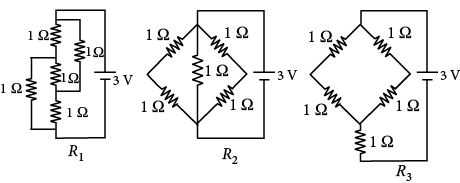

Figure shows three resistor configurations R1 and R2 and R3 connected to 3 V battery. If the power dissipated by the configuration R1, R2 and R3 is P1, P2 and P3 respectively, then
- P1 > P2 > P3
- P1 > P3 > P2
- P2 > P1 > P3
- P3 > P2 > P1
Answer
(B) P 1 > P 3 > P 2
