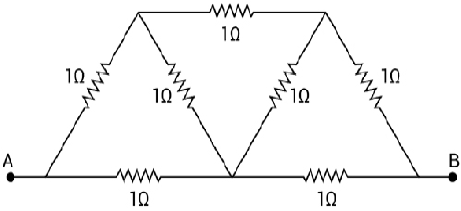

In the circuit diagram shown below each resistance is of value 1 ohm, what is the euivalent resistance between the points A and B.
- 4/7 Ω
- 8/7 Ω
- 3/14 Ω
- 16/7 Ω
Answer
(B) 8/7 Ω
