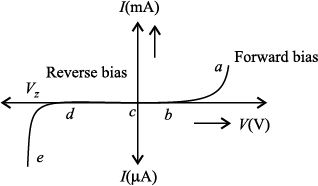

The given graph represents the I-V characteristics of a Zener diode. Which part of the characteristics curve is most relevant for its operation as a voltage regulator?
- ab
- bc
- cd
- de
Answer
(C) cd
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
