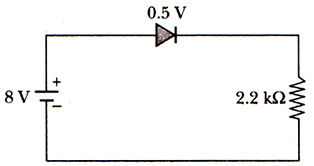

In the given circuit, if the forward voltage drop for the diode is 0.5 V, the current is

Physics · JEE Main · NTA Exams — Electronic Devices

In the given circuit, if the forward voltage drop for the diode is 0.5 V, the current is

1. 3.4 mA
2. 2 mA
3. 2.5 mA
4. 3 mA

Answer

(A) 3.4 mA

Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
