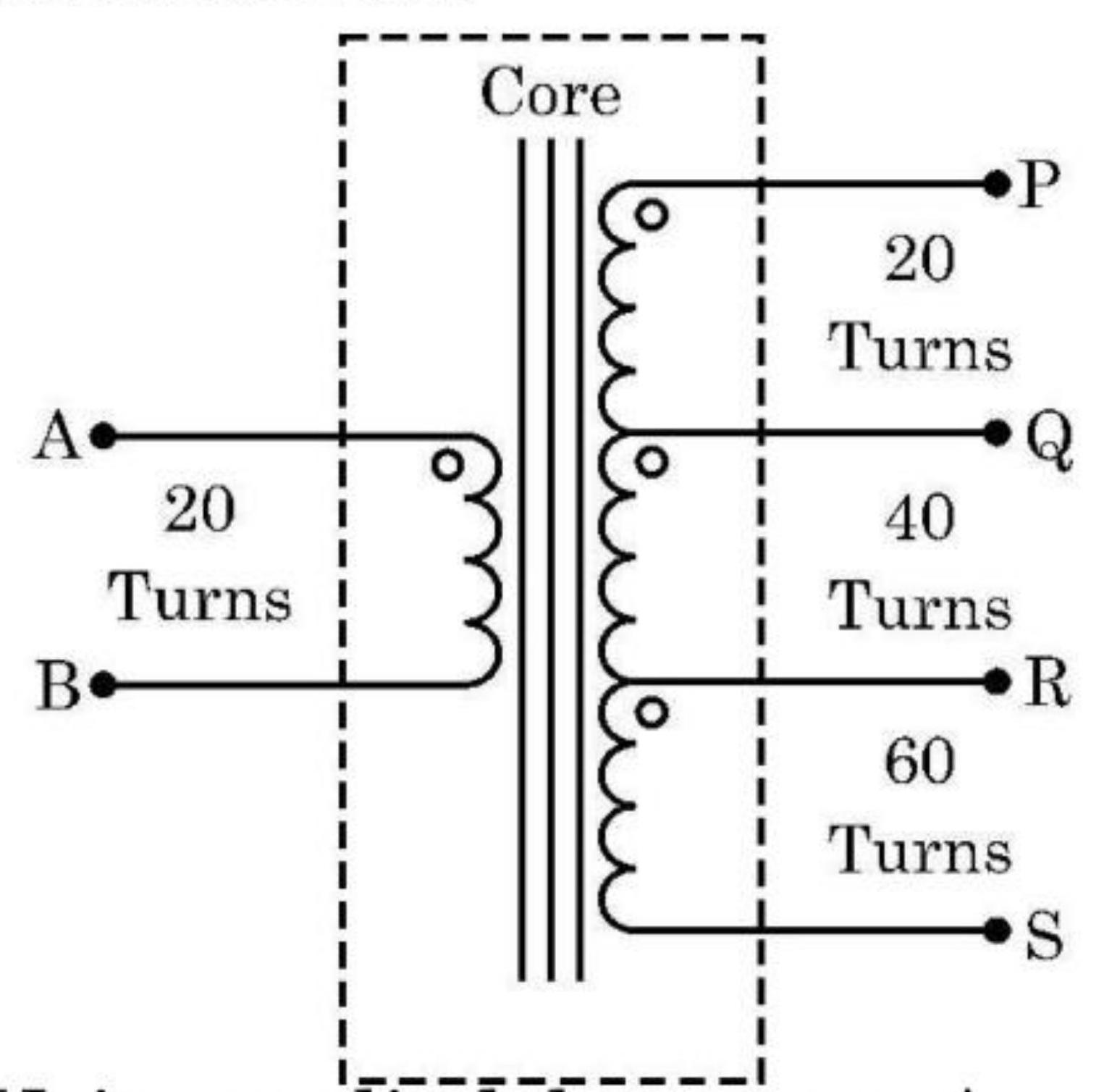

The number of turns between different pairs of output terminals are shown for a step-up transformer.
Input voltage of 20 V is applied between A and B . Between which two terminals will the output be 120 V?
- P and Q
- Q and S
- P and R
- P and S
Answer
(D) P and S
