In the circuit shown the resistances are given in ohms and the battery is assumed to be…
Physics · JEE Advanced · NTA Exams — Current Electricity

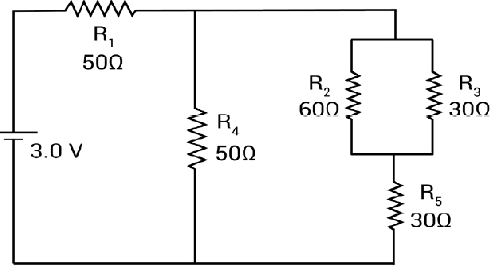

In the circuit shown the resistances are given in ohms and the battery is assumed to be ideal with e.m.f. equal to 3.0 volt.
The resistor that dissipated maximum power will be
- R1
- R2
- R3
- R5
Answer
(A) R 1
