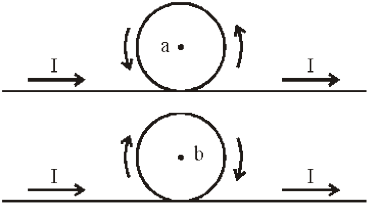

In figure, the conductors carry equal currents I. All straight segments are very long and two circular loops have equal radii. However current around loops have opposite senses. What is the ratio of magnetic fields at a and b at the centre of the loops.
- \(\frac{\mathrm{B}_{\mathrm{a}}}{\mathrm{~B}_{\mathrm{b}}}=\frac{\pi+1}{\pi-1}\)
- \(\frac{\mathrm{B}_{\mathrm{a}}}{\mathrm{~B}_{\mathrm{b}}}=\frac{\pi+2}{\pi-2}\)
- \(\frac{\mathrm{B}_{\mathrm{a}}}{\mathrm{~B}_{\mathrm{b}}}=\frac{2 \pi-1}{2 \pi+1}\)
- \(\frac{\mathrm{B}_{\mathrm{a}}}{\mathrm{~B}_{\mathrm{b}}}=\frac{2 \pi+1}{2 \pi}\)
Answer
(A) B _ a ~B _ b = +1 -1
Sign up free on Edukali to view the step-by-step worked solution and practice thousands of similar questions.
