In the circuit shown, some potential difference is applied between A & B. The equivalent…

Physics · JEE Main · NTA Exams — Current Electricity

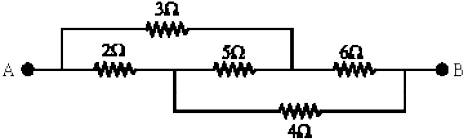

In the circuit shown, some potential difference is applied between A & B. The equivalent resistance between A & B is

1. 14 Ω
2. 12.5 Ω
3. 3.6 Ω
4. 2.1 Ω

Answer

(C) 3.6 Ω
